Farpoint Tri-Bahtinov Focus Masks

Farpoint Tri-Bahtinov Focus Masks
  Zoom
Size: 5.5 Inch to 8.5 Inch OTAsSize: Celestron 8Size: Celestron 8
Size: Meade 8Size: Celestron 11Size: Celestron 11
Size: Meade 10Size: Meade 12Size: Celestron 9.25
Price:  £22.99(Inc. 20% VAT)Earn 22 Loyalty Points
+

Model:  FP402T
Brand:  Farpoint



2 Year Warranty On All New Items
(Excluding Batteries & Globes)



Farpoint Tri-Bahtinov Mask

What is the Tri-Bahtinov?


It essentially three Bahtinov masks in one, rotated over 120 degrees. It gives you three lines and three crosses to check collimation, along three axis simultaneously.

In addition to focusing, the tri-Bahtinov so also indicates collimation status along three axis.

This is interesting for e.g. Schmidt-Cassegrain telescopes, where the collimation is done by push-pull screws of the secondary mirror along three axis.

When you position the tri-Bahtinov alongside these axis, it will give you insight not only per axis of the focus but also how different these focus points are for each axis.

Bahtinov mask is a less expensive method of getting focus on objects in the night sky compared to a standard motor focuser.

With the right mask and setup, it’s easy to get crystal clear focus on a star in less than 90 seconds.

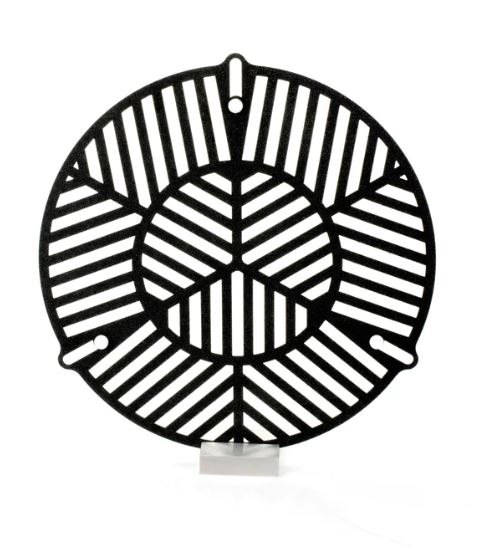

Farpoint Tri-Bahtinov Mask- 5.5 Inch to 8.5 Inch OTAs

Farpoint Tri-Bahtinov Focus Mask- 5.5 Inch to 8.5 Inch OTAs is an ingenious new way to easily focus a telescope. Adjustable Bahtinov focus mask for telescopes with dew shield or front end diameter from 5.5" to 8.5". The Tri-Bahtinov mask can also be used for collimation of your telescope.

Pavel Bahtinov, a Russian amateur telescope maker and astronomer, created this simple, very intuitive method and the device has universally been named after him: The Bahtinov Mask.

Attach a camera to the telescope, center a fairly bright star and achieve rough focus. Then place the mask over the front aperture of your telescope by “hanging” it on the plastic screws from the front dew shield. Take a short exposure. The image of the star will show diffraction spikes. The “center” set will most likely be shifted to one side or the other. This is showing the defocus.

Adjust the focus of the telescope and re-expose the star, once again showing the diffraction spike pattern. Iterate the process until the central diffraction spike is centered against the star and the other spikes. When a symmetrical pattern is achieved, the best possible focus is then reached. Simply remove the mask, center the target object and take amazing, sharp images!

Farpoint manufactures this "lifesaving" astrophotography tool out of virtually indestructible ABS plastic, which comes in two major types and in a range of sizes. In addition to Bahtinov masks for telescopes, Farpoint also makes Bahtinov masks for DSLR camera lenses.

Bahtinov Masks Are one of the best tools for manually focusing your telescope available to astrophotographers. In 2005, Pavel Bahtinov, a Russian amateur telescope maker and astronomer detailed a new way to easily focus your DSLR, CMOS or CCD camera for astrophotography by adding a mask that matches the diameter of your telescope.

Bahtinov mask are a less expensive method of getting focus on objects in the night sky compared to a standard motor focuser.

With the right mask and setup it’s easy to get crystal clear focus on a star in less than 90 seconds. Again, the Tri-Bahtinov mask can be used for collimation of your telescope. See the discussion on Cloudy Nights.

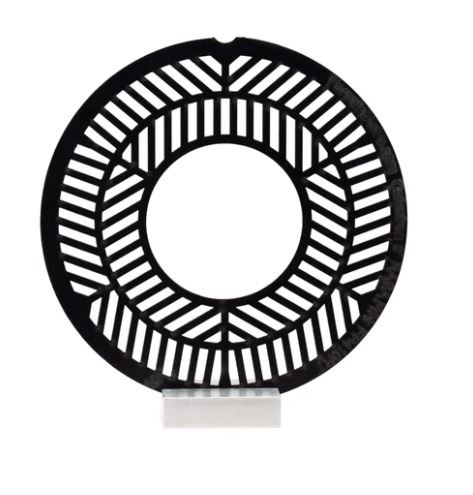

Tri-Bahtinov Mask for Celestron 8" SCT

The Tri-Bahtinov Mask is an advanced version of the Bahtinov mask that allows for even more precise adjustments and can also be used as a collimation tool.

It does NOT fit with the Hyperstar or Fastar camera installed. But if you look carefully, you will see a slit that goes almost all the way across one side. Just complete that slit and you can flex (twist) the mask to open it up to get around the camera.


Tri-Bahtinov Focus and Collimation Mask for Celestron 8" SCT with Hyperstar or Fastar- is an ingenious new way to easily focus a telescope. Pavel Bahtinov, a Russian amateur telescope maker and astronomer, created this simple, very intuitive method and the device has universally been named after him: The Bahtinov Mask.


Tri-Bahtinov Mask for Celestron 8" SCT based off the classic Bahtinov mask: it allows to focus a bit more objective compared to visual star focusing.

The Bahtinov will produce Cross-shaped stars, with one clear line that moves along the cross as you focus. When the line is centered on the cross, you should have achieved perfect focus.

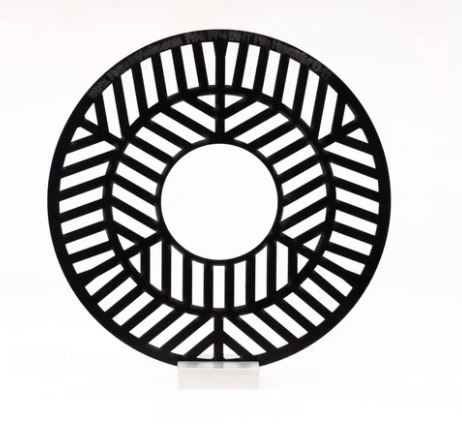

Tri-Bahtinov Mask for Celestron 8" RASA

The Tri-Bahtinov Mask is an advanced version of the Bahtinov mask that allows for even more precise adjustments and can also be used as a collimation tool


Tri-Bahtinov Focus and Collimation Mask for Celestron 8" RASA- For the Celestron RASA 8" telescope, is an ingenious new way to easily focus a telescope. Pavel Bahtinov, a Russian amateur telescope maker and astronomer, created this simple, very intuitive method and the device has universally been named after him: The Bahtinov Mask.




Tri-Bahtinov Mask for Celestron 8" RASA based off the classic Bahtinov mask: it allows to focus a bit more objective compared to visual star focusing.

The Bahtinov will produce Cross-shaped stars, with one clear line that moves along the cross as you focus. When the line is centered on the cross, you should have achieved perfect focus.

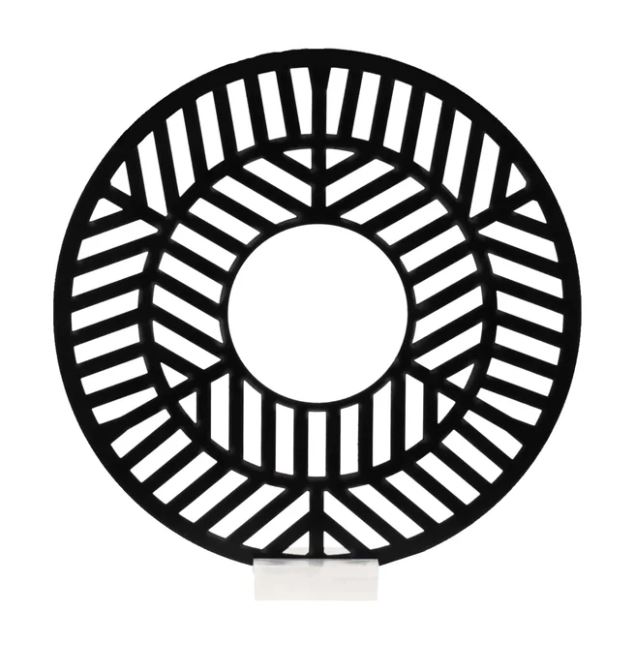

Tri-Bahtinov Mask for Meade 8" SCT

The Tri-Bahtinov Mask is an advanced version of the Bahtinov mask that allows for even more precise adjustments and can also be used as a collimation tool


Tri-Bahtinov Focus and Collimation Mask for Meade 8" SCT- is an ingenious new way to easily focus a telescope. Pavel Bahtinov, a Russian amateur telescope maker and astronomer, created this simple, very intuitive method and the device has universally been named after him: The Bahtinov Mask.


Tri-Bahtinov Mask for Meade 8" SCT based off the classic Bahtinov mask: it allows to focus a bit more objective compared to visual star focusing.

The Bahtinov will produce Cross-shaped stars, with one clear line that moves

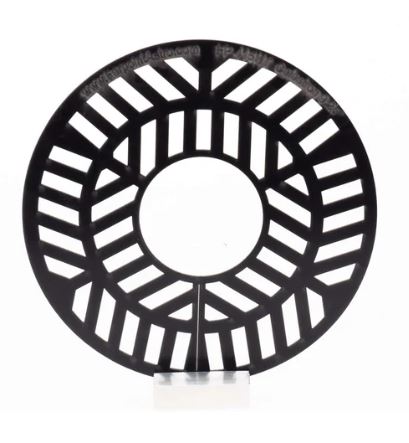

Tri-Bahtinov Mask for Celestron 11" SCT

The Tri-Bahtinov Mask is an advanced version of the Bahtinov mask that allows for even more precise adjustments and can also be used as a collimation tool

It does NOT fit with the Hyperstar or Fastar camera installed. But if you look carefully, you will see a slit that goes almost all the way across one side. Just complete that slit and you can flex (twist) the mask to open it up to get around the camera.

Tri-Bahtinov Focus and Collimastion Mask for Celestron 11" SCT - with Hyperstar or Fastar- is an ingenious new way to easily focus a telescope. Pavel Bahtinov, a Russian amateur telescope maker and astronomer, created this simple, very intuitive method and the device has universally been named after him: The Bahtinov Mask.


Tri-Bahtinov Mask for Celestron 11" SCT with Hyperstar or Fastar based off the classic Bahtinov mask: it allows to focus a bit more objective compared to visual star focusing.

The Bahtinov will produce Cross-shaped stars, with one clear line that moves along the cross as you focus. When the line is centered on the cross, you should have achieved perfect focus.

Tri-Bahtinov Mask Celestron 11" RASA-with Hyperstar or Fastar

The Tri-Bahtinov Mask is an advanced version of the Bahtinov mask that allows for even more precise adjustments and can also be used as a collimation tool

Tri-Bahtinov Focus and Collimastion Mask for Celestron 11" RASA - with Hyperstar or Fastar is an ingenious new way to easily focus a telescope. Pavel Bahtinov, a Russian amateur telescope maker and astronomer, created this simple, very intuitive method and the device has universally been named after him: The Bahtinov Mask.


Tri-Bahtinov Mask Celestron 11" RASA-with Hyperstar or Fastar based off the classic Bahtinov mask: it allows to focus a bit more objective compared to visual star focusing.

The Bahtinov will produce Cross-shaped stars, with one clear line that moves along the cross as you focus. When the line is centered on the cross, you should have achieved perfect focus.

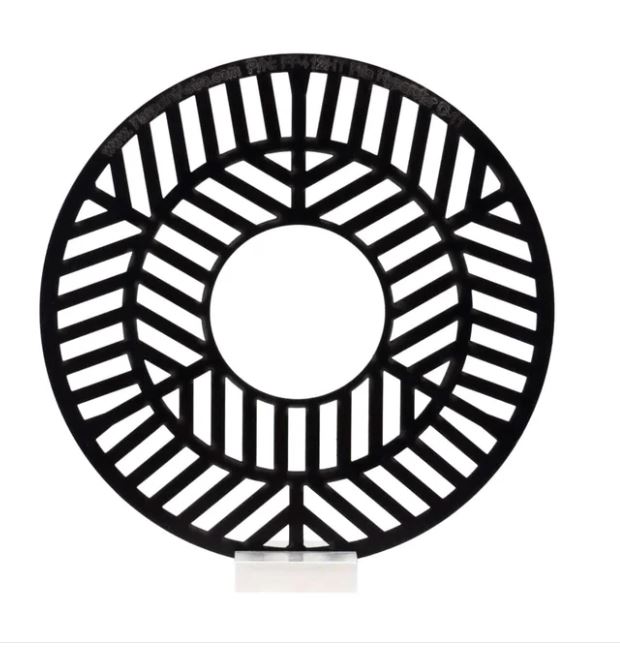

Tri-Bahtinov Mask for Meade 10" SCT

The Tri-Bahtinov Mask is an advanced version of the Bahtinov mask that allows for even more precise adjustments and can also be used as a collimation tool

Tri-Bahtinov Focus and Collimation Mask for Meade 10" SCT is an ingenious new way to easily focus a telescope. Pavel Bahtinov, a Russian amateur telescope maker and astronomer, created this simple, very intuitive method and the device has universally been named after him: The Bahtinov Mask.


Tri-Bahtinov Mask for Meade 10" SCT based off the classic Bahtinov mask: it allows to focus a bit more objective compared to visual star focusing.

The Bahtinov will produce Cross-shaped stars, with one clear line that moves along the cross as you focus. When the line is centered on the cross, you should have achieved perfect focus.

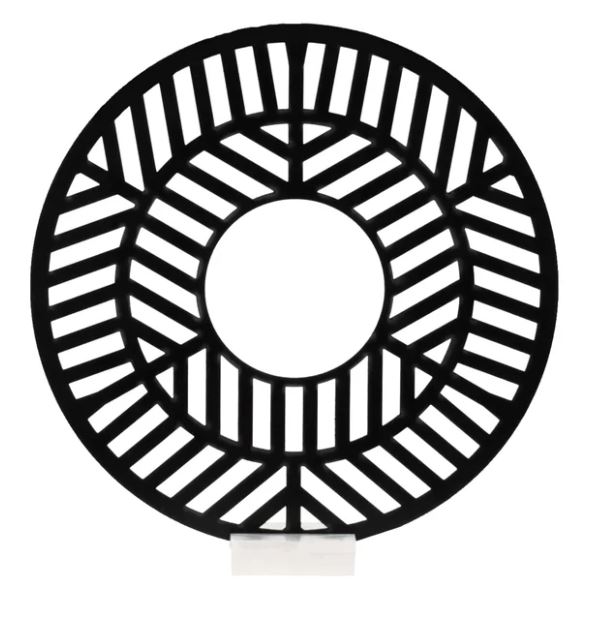

Tri-Bahtinov Mask for Meade 12" SCT

The Tri-Bahtinov Mask is an advanced version of the Bahtinov mask that allows for even more precise adjustments and can also be used as a collimation tool

Tri-Bahtinov Focus and Collimation Mask for Meade 12" SCT is an ingenious new way to easily focus a telescope. Pavel Bahtinov, a Russian amateur telescope maker and astronomer, created this simple, very intuitive method and the device has universally been named after him: The Bahtinov Mask.

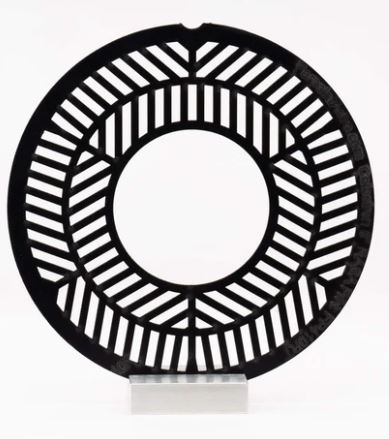

Tri-Bahtinov Focus and Collimation Mask for Celestron 9.25" SCT with Hyperstar or Fastar

The Tri-Bahtinov Mask is an advanced version of the Bahtinov mask that allows for even more precise adjustments and can also be used as a collimation tool

Tri-Bahtinov Focus and Collimation Mask for Celestron 9.25" SCT with Hyperstar or Fastar is an ingenious new way to easily focus a telescope. Pavel Bahtinov, a Russian amateur telescope maker and astronomer, created this simple, very intuitive method and the device has universally been named after him: The Bahtinov Mask.

It does NOT fit with the Hyperstar or Fastar camera installed. But if you look carefully, you will see a slit that goes almost all the way across one side. Just complete that slit and you can flex (twist) the mask to open it up to get around the camera. The OD is 10.25" and the ID is 3.375".


Tri-Bahtinov Focus and Collimation Mask for Celestron 9.25" SCT with Hyperstar or Fastar based off the classic Bahtinov mask: it allows to focus a bit more objective compared to visual star focusing.

The Bahtinov will produce Cross-shaped stars, with one clear line that moves along the cross as you focus. When the line is centered on the cross, you should have achieved perfect focus.

How it Works

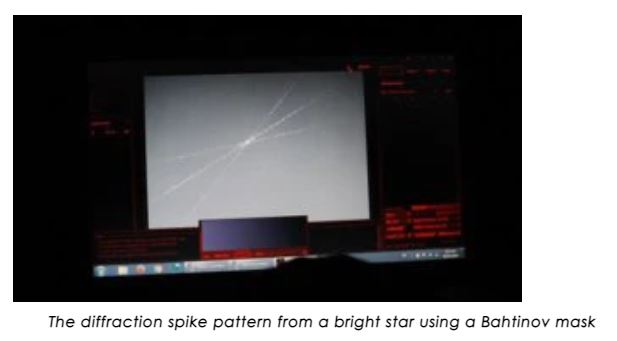

The slits in the mask are the focus assist, when the star is in focus it will appear on your screen display as an “X” with a line through the center (see above). These mask will work equally as well on the end of a scope or on the end of a dew shield on top of that the mask itself does not need to be perfected centered on the scope this is due to the angle of the slits themselves. Select a bright star, this will be your guiding object. Place the Bahtinov focusing mask on your telescope’s lens and secure it into place using the provided rubber tabs. The slits in the mask design create a set of diffraction spikes on the star that will assist in the accuracy of our focus. It will appear on your DSLR display screen or computer as an “X” with a line through the center (when in focus). The diffraction spike pattern from a bright star using a Bahtinov mask As you adjust the focuser of your telescope, the central spike will move in and out of the X-pattern. If you are using capture software be sure to compensate for the lag time between exposures on the screen, typically 4-5 seconds. The same process applies using Live view display on your DSLR camera. The difference is, the image will be much dimmer, as you are essentially looking at a live video feed rather than a short image exposure.
