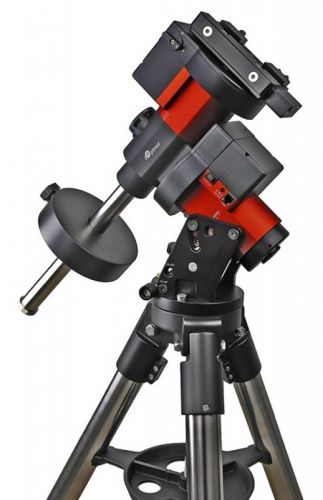

iOptron GEM45EC Equatorial GOTO Mount & Tripod With RA Encoder

iOptron GEM45EC Equatorial GOTO Mount & Tripod With RA Encoder
  Zoom
iOptron GEM45EC Equatorial GOTO Mount & Tripod With RA EncoderiOptron GEM45EC Equatorial GOTO Mount & Tripod With RA EncoderiOptron GEM45EC Equatorial GOTO Mount & Tripod With RA Encoder
Price:  £3,249.00(Inc. 20% VAT)Earn 3,249 Loyalty Points
+

Model:  7603ECA
Brand:  iOptron

Availability:



Generally In Stock, Please Confirm Before Ordering

2 Year Warranty On All New Items



Innovative ideas applied to a time tested design, the iOptron® GEM45EC next generation German equatorial mounts. A sharp looking CNC body is the first indicator the GEM45 is a top quality mount in both form and function.

Utilizing experiences gained during development of our CEM series, we were able to remove unnecessary bulk giving the GEM45 an incredible 2.8 payload to mount weight ratio. This compact 15.8lb mount can precisely GOTO an object and track with up to 45lbs of gear onboard. With its integrated electronic polar scope (iPolarTM), polar alignment is a snap, even when the pole star is obscured. Large levers on the quick-lock drive engagement system make it easy to snap its drive gears into place even when wearing gloves. There is little chance of your cables getting snagged with the GEM45's internal advanced cable management system.

A new, patent pending Universal Self-Centering Saddle (USCS) accommodates Losmandy and Vixen style dovetail plates. GEM45EC mounts utilize reliable stepper motor drive systems with our low power consumption technology. Looking for ultra precise tracking, the GEM45EC with its high resolution encode delivers a PE<0.25 arcsec rms. Our new LiteRoc 1.75" tripod delivers rock solid stability in a lighter, more compact package. A 212,000+ object library with star identification, GPS, Wi-Fi (requires optional iStarFi adapter) are a few of the desirable features standard on a GEM45 mount.


Features
German equatorial mount with innovative features
Idea for both visual observation and astrophotography
Maximum payload of 45 lbs (20 kg) with the mount weight of only 15.8 lbs (7.2 kg)
Easy to use quick-lock gear clutches
Integrated iPolarTM electronic polar finder
Low periodic error (<0.25 arc seconds rms)
Realtime periodic error correction (RPEC)
Precision stepper motor for precise GOTO and accurate tracking
Go2Nova® 8407+ controller with Advanced GOTONOVA® GOTO Technology and built-in heater
Integrated ST-4 autoguiding port
32-channel Global Positioning System (GPS)
USB communication port
Cable management system
New, patent-pending iOptron universal saddle
All metal, CNC machined with red/black anodized
Optional WiFi for mount control via SmartPhone/Tablet/Computer
All new LiteRoc 1.75" tripod with improved stability and leg locks
Hard case included

Technical Specifications:

Mount German Equatorial Mount
Max payload* 45 lbs (20 kg), exclude counterweight
Mount weight 15.8 lb (7.2 kg)
Structure Material All metal, CNC machined
Exterior Finish Anodized red/black
Latitude adjustment range 14º ~ 68º
Azimuth adjustment range ± 6º
Tracking accuracy (PE)** <0.25 arcsec rms
PEC Real-time PEC (RPEC)
Period 400 sec
Worm diameter &#934;17mm, Brass
Right Ascension worm wheel &#934;110mm, 216 teeth, zero backlash
Declination worm wheel &#934;110mm, 216 teeth, zero backlash
Right Ascension axis shaft &#934;45mm steel
Declination axis shaft &#934;45mm steel
Right Ascension bearings &#934;68mm
Declination bearings &#934;68mm
Counterweight shaft &#934;28X280 mm, Stainless Steel (1.2 kg)
Counterweight 11lbs (5kg) X1
Motor Precision stepper motor, 1.8º/128X micro-step
Motor resolution 0.08 arcsec (200 PPS)
Transmission Synchronous belt
Hand Controller Go2Nova® 8407+, 8 line 21 character LCD
Star Database 212,000+, star identification
Power DC 12V, 5A
AC adapter 100V ~ 240V (included)
Power consumption 0.6A(Tracking), 0.9A(GOTO)
Power-down memory Yes
Polar scope Internal iPolar TM electronic polar scope
Meridian treatment Stop (0-20° pass), flip
Zero position Automatic zero search
Dovetail saddle iOptron Universal Saddle, 5"
Max slew speed 4.5°/sec (1080X)
Guiding port ST-4
Communication port USB
GPS Yes
WiFi External (optional)
Cable Management DC12V (3A), ST4,USB
Tripod 1.75" Stainless Steel(~8kg), or optional Tri-pier
Hard case Included
Operation temperature -10ºC ~ 40ºC
Warranty Two year limited

* OTA size and length dependent
** Measured with encoder, 400 seconds
