Askar 107PHQ 107mm f/7 Quadruplet ED APO Astrograph OTA

Askar 107PHQ 107mm f/7 Quadruplet ED APO Astrograph OTA
  Zoom
Price:  £2,699.00(Inc. 20% VAT)
+

Model:  ASKAR-107PHQ
Brand:  Askar

Availability



Generally In Stock, Please Confirm Before Ordering



2 Year Warranty On All New Items
(Excluding Batteries & Globes)

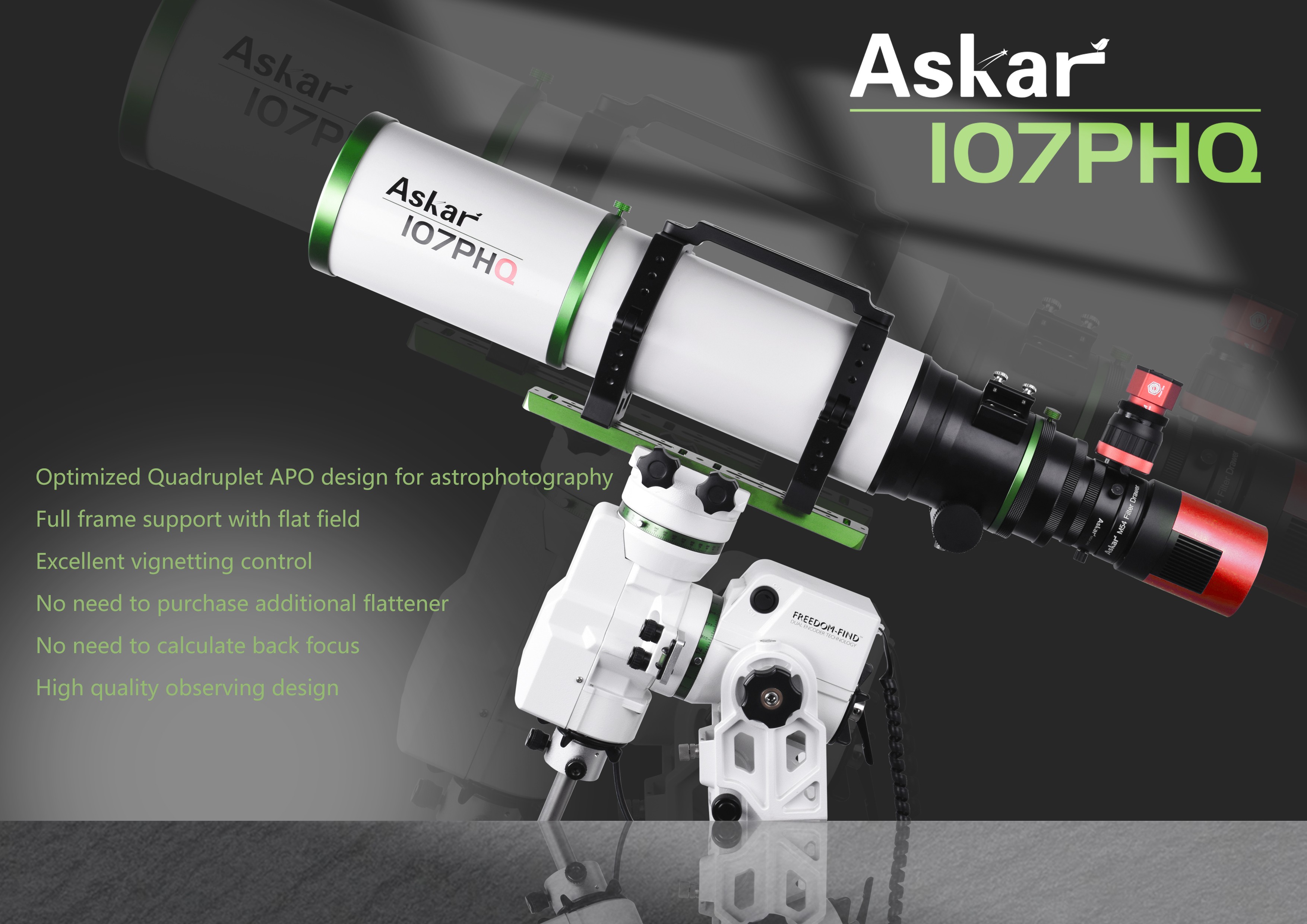

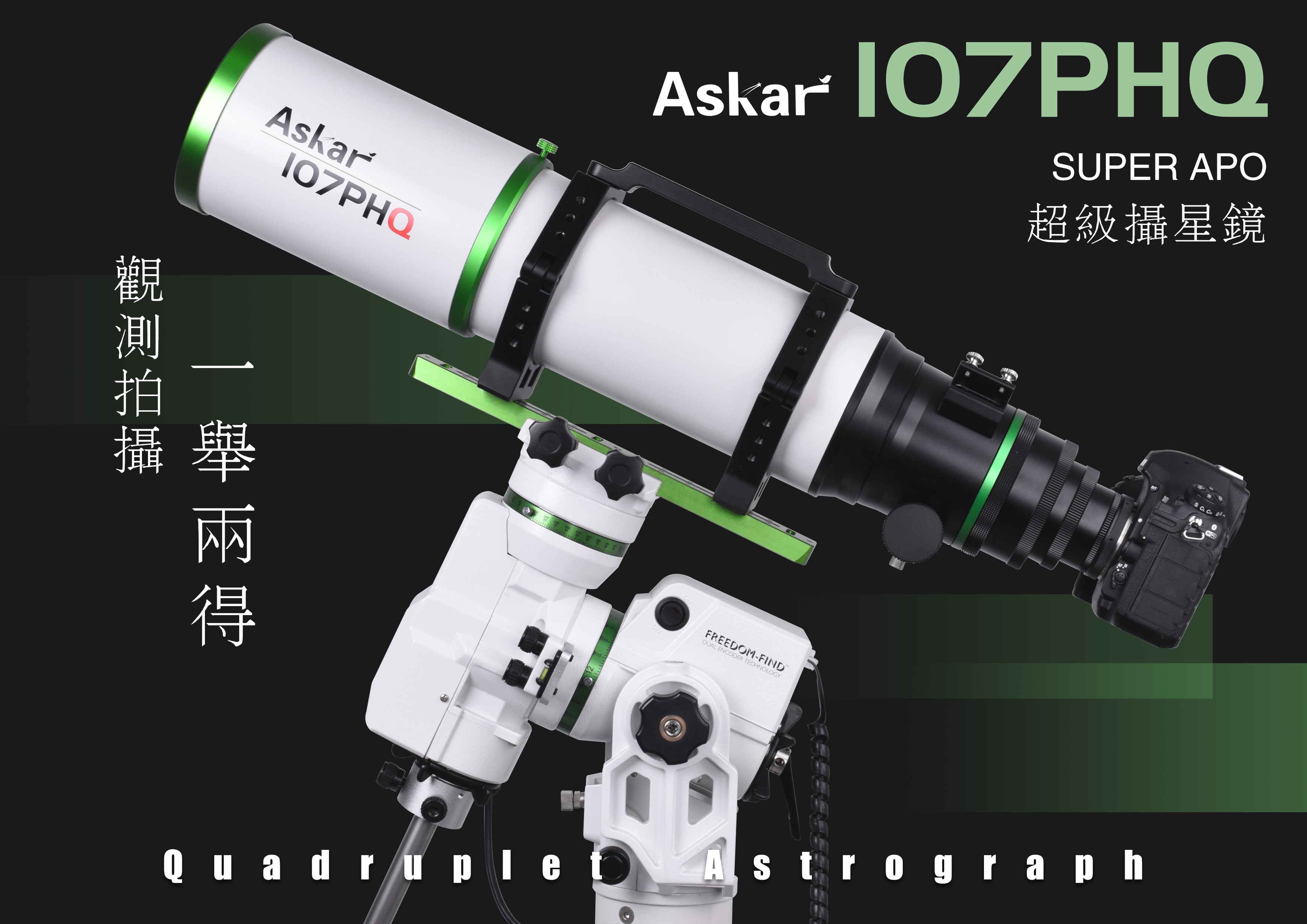

As the first long-focal-ratio Flatfield astrograph from Askar, 107PHQ is born with a special mission: whether you are just getting started in astrophotography,
or an enthusiast who has been quite familiar with all equipment and devices, you can always find Askar 107PHQ a useful astrograph which is functionally practical and physically attractive.
It’s especially amateur or beginner friendly since you don’t need to attach an extra field flattener to get a satisfactory picture. And for the fact that you don’t need a flattener and you can easily get over back-focus calculation
and confusing connection steps, all you need to do is to equip your 107PHQ with any possible imaging devices, make the target stay at the focus, and then the whole optical system is perfect for imaging.

Askar 107PHQ, a versatile all-rounder
Askar 107PHQ can literally be applied in any conceivable situations, and that’s the top reason why 107PHQ is produced: to slash as much trouble for users as possible.

Askar 107PHQ can capture tiny star objects due to its 740mm focal length and astonishing field flattening capacity. When used Askar 107PHQ and a high-resolution camera, it can still bring out lots of detailed information of your target.
Askar 107PHQ is also a nice choice for your visual observation. It fits 1.25", 2" zenith mirrors as well as various eyepieces and can achieve a perfect focus. It can even be used to observe planets with a super-high magnification eyepiece.

Askar 107PHQ, an f/7 astrograph, contains four pieces of lenses including two pieces of ED glass, which can better reduce chromatic aberration. It can achieve excellent color correction even with the magnification mounting to 300× in visual observation.

The sleek 107PHQ is assembled with high-quality CNC-machined components and wrapped with smooth coating. The calm and seriousness is offset by the bright green decorative rings or knobs. The 3.4" rigid focuser is capable of handling a load of 8kg. It’s designed with a long travel distance of 95mm, which is suitable for visual observation. And it’s been optimized especially for astrophotography.

The built-in Flatfield lens is a great contribution to Askar 107PHQ’s imaging ability. It supports 44mm full-frame imaging. The stars around the corner of the images seldom suffer from distortion or deformation. At the center of its field of view, the RMS radius is merely 3um. Even a fastidious user can also be satiated when it comes to the shape of stars. Askar 170PHQ can effectively handle with problems of field curvature and vignette.

The standard package includes an Askar 107PHQ OTA, a set of four-piece M86-M48 adapters, a pair of tube rings, a 300mm Askar Vixen-style dovetail plate and a high-quality aluminum suitcase.

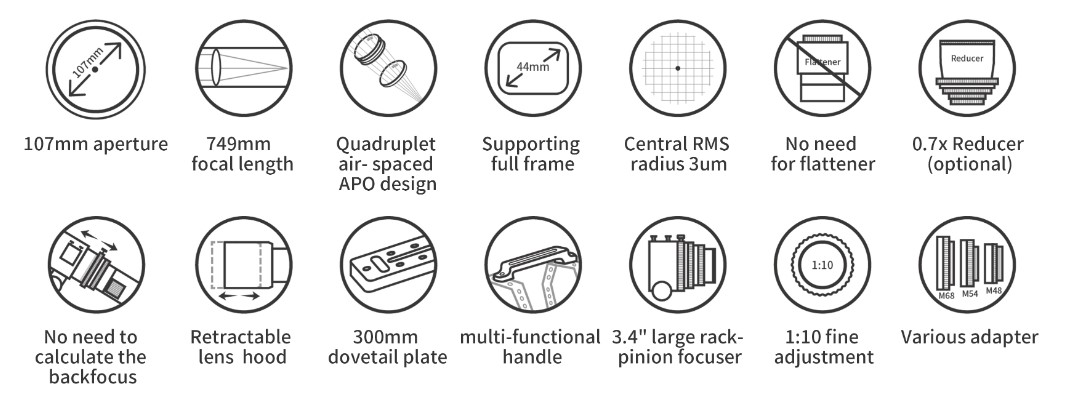

Aperture size:107mm
Focal length:749mm
Focal ratio:f/7
Objective lens:Quadruplet air-spaced APO (including two ED glass)
Image circle:44mm
Maximum accessory connection (with the focuser fully retreated):
1. Imaging mode:
79mm (from the base of M48×0.75 male thread)
99mm (from the base of M54×0.75 male thread)
119mm (from the base of M68×1male thread)
149mm (from the base of M86×1 male thread)
2. Observing mode:
120mm (from the end of 2" visual back)

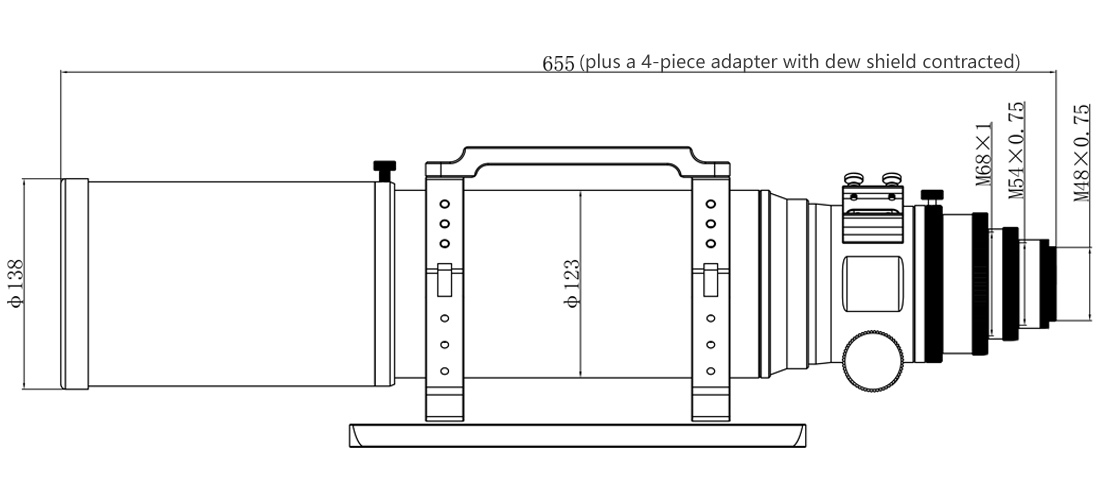

Total length:603mm(when the dew shield is contracted)
754mm(when the dew shield is stretched)
Net weight:5.7kg
Gross weight:6.9kg
Rear-end thread type:M86×1 to M68×1
M68×1 to M54×0.75
M54×0.75 to M52×0.75
M52×0.75 to M48×0.75(with M48×0.75 filter thread)
Four-piece photographic adapter:M48×0.75
Standard package items:a 107PHQ OTA,a pair of tube rings, a handle, an Askar 300mm Vixen dovetail plate, a set of four-piece photographic adapters, a manual

Be the first to Write a Review for this item!

Some items that are showing as in stock are in stock at our holding warehouses, not at the shop. To double check the stock levels at the shop, please contact us on 01909774369 or sales@rothervalleyoptics.co.uk.

The delivery times for most items is 1 - 2 days but again, please double check stock levels on important orders before placing an order via the website.

The delivery costs for courier next day are for mainland UK only. If you live in the Scottish Highlands/Islands, Channel Islands or Northern Ireland, then a shipping surchage will apply. please contact us for prices. Smaller items can still go 1st class via Royal Mail.

Please note that if you are wanting to take advantage of our Saturday and Sunday timed services or next day pre 12 or pre 10:30 services, you MUST check that the stock is here at the shop before placing orders. Also, orders using the Saturday and Sunday services must be placed before 1pm the previous working day. Also, please remember to check that the stock is here at the shop before placing orders. If the stock is not at the shop, we won't be able to ship on any of the timed services.

Please note International customers will need to contact us for a shipping price prior to ordering via the website. We don't ship all items internationally. It is at our discretion what we ship outside of the UK. This all depends on the size and weight of the items. Please get in touch with us for any postage costs. Please note we do NOT ship telescopes or heavy items outside of the UK. This is due to massive postage costs and problems regarding returns.

If you have any questions regarding stock levels or delivery, please get in touch.

Zygo Interferometer Testing For ED Refractor Telescopes!

We are extremely pleased to announce our Zygo Interferometer is now installed and ready for use! Our experienced staff can test refractor lenses up to 120mm aperture and provide a comprehensive 2 page report showing the optical quality and Strehl ratio, plus much more information. We are using the very latest Zygo MX software to provide a more detailed report compared to other standard reports.



The interferometer is essentially a measuring instrument. Within the interferometer is a calibrated laser that is pointed through the optical test surface, then onto a high quality reference sphere, then back through the test subject then to an internal camera which gives us the measurement on the screen. From this, we can adjust the position of the test optic and the reference sphere to obtain a perfectly calibrated system. The more central the laser to the test optic and then on return, the better and more accurate reading and measurement we can take. This takes a lot of adjustment to get the best results from the optical surface. Once the measurement has been taken, we are provided with a series of results that show the optical quality of the surface plus other information. Continue reading for an explanation of the individual values and you can also see a test report that was done on one of our RVO Horizon 60 OTAs.

We are offering certain telescopes with a Zygo test at an extra cost. Mainly ED doublets and triplets. All available telescopes with a Zygo test report are listed here. Just select Zygo Test Report from the drop down box at the top of the listing and we will test the optics in house and provide a full 2 page report with your scope. This will show you the optical quality of your telescope optics. We can also offer this service on your refractor telescope. Please get in touch for more details about this.

At Rother Valley Optics, one thing we pride ourselves on is customer service and quality of our equipment. When we test your telescope, we will ensure that it is of the highest quality otherwise, we will reject the scope under our strict quality control and test another model for your peace of mind. One of the main values to look at when testing a refractor is the Strehl ratio. The higher this number, the higher quality lens you have. At Rother Valley Optics, we will guarantee the highest possible Strehl ratio for your telescope.  We will aim to provide 0.95 Strehl or higher on Takahashi, RVO Horizon, William Optics and many more! Generally, the higher the Strehl ratio, the lower the Astigmatism and Coma meaning a better image quality from your instrument.

Other measurements such as the PV and RMS are important too. With these measurements, the lower the number the better as it shows less curvature on the lens. The flatter an optical lens, the better it will perform. The PV rating (Peak To Valley) is a measurement from the highest point (Peak) to the lowest point (Valley). From this we get the RMS (Root, Mean, Square). This is a similar figure to the PV and measured exactly the same way. The RMS is basically an average height difference from the PV so again, the lower the better. As you can see form the example below, we measured an RMS of just 0.027 wave which is a very good value.

We also measure the Power with our systems which is essentially the error from the reference sphere to the test optic. The reference sphere we use on our system is a very high quality sphere so the closer to zero the Power, the less error between the 2 elements thus ensuring a higher quality optical surface.

You will also see some more values such as Astigmatism and Coma. Again, these are measured by the interferometer when we take measurements of the optical surface after adjustment. These are values which ideally would be at 0 but as our test optics are all curved lenses, there will always be astigmatism and coma present. The lower the number, the less of these aberations you will effectively see but with most refractors, you can buy field flatteners which will compensate for the coma anyway. The astigmatisms value is explaining the error between the symmetrical curvature of the lens. Basically, no lens will be perfectly symmetrical, the lower the astigmatism, the more symmetrical the lens surface is.

Once the Zygo test report has been completed, the optical alignment is thoroughly tested and tuned to ensure they are spot on before they leave us.

All available telescopes are on the website at the link below and ones we've tested already that are available straight away are also listed.

https://www.rothervalleyoptics.co.uk/zygo-tested-refractors.html

Here is an example of the test what we provide. This was a test on one of our Horizon 60 ED OTA's.

For any questions about this amazing new service, please either call 01909774369 or email sales@rothervalleyoptics.co.uk.
