Skywatcher EQM-35 Pro SynScan GOTO Modular Equatorial Mounting System

Skywatcher EQM-35 Pro SynScan GOTO Modular Equatorial Mounting System
  Zoom
Skywatcher EQM-35 Pro SynScan GOTO Modular Equatorial Mounting SystemSkywatcher EQM-35 Pro SynScan GOTO Modular Equatorial Mounting SystemSkywatcher EQM-35 Pro SynScan GOTO Modular Equatorial Mounting System
Skywatcher EQM-35 Pro SynScan GOTO Modular Equatorial Mounting SystemSkywatcher EQM-35 Pro SynScan GOTO Modular Equatorial Mounting System
Price  £659.00
List Price  £699.00
Saving Of  £40.00
(Inc. 20% VAT)
+

Model:  20980
Brand:  Skywatcher

Availability



Generally In Stock, Please Confirm Before Ordering


2 Year Warranty On All New Items
(Excluding Batteries & Globes)

  (1 Review)

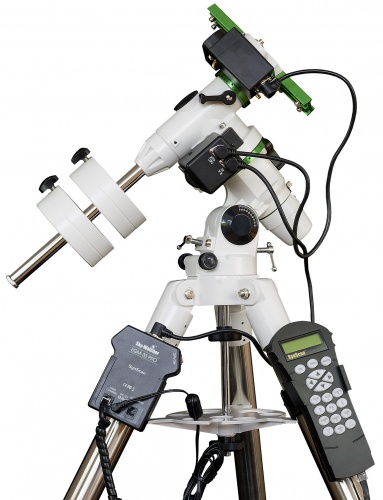

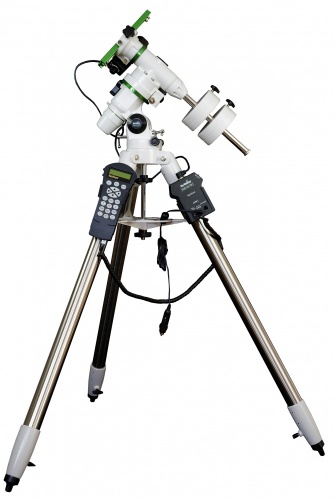

The Sky-Watcher EQM-35 PRO Synscan Modular Equatorial Mount offers the versatility of two mounts in one! A normal Go-To equatorial mount and a lightweight photo imaging mount, which is convenient for travelling.

In standard configuration mode with DEC and RA axes, you can use it as a normal Synscan™ equatorial mount with computerised Go-To and tracking in both axes with access to 42,900+ objects in the Synscan™ handset's database. The payload capacity for visual use is an impressive 10kg in this configuration.

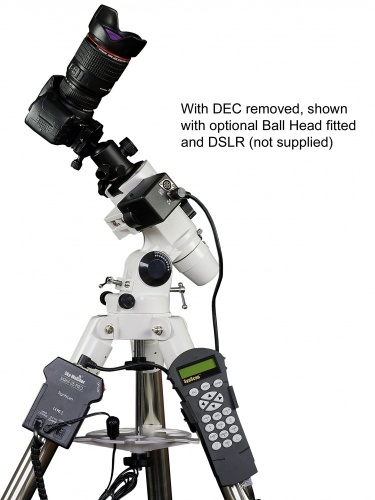

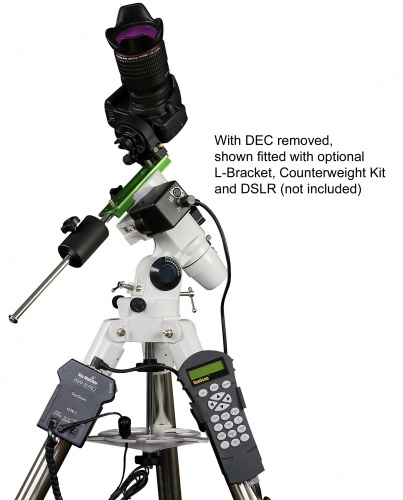

For travelling you can remove the DEC Axis together with the heavy counterweight shaft and counterweights, reducing the instrument's weight considerably. In this configuration you can use a simple 45mm dovetail plate with tripod screw (not supplied) and fit your camera directly using a ball head (not supplied). Alternatively a DSLR can be mounted to a Sky-Watcher Star Adventurer L-Bracket (not supplied). With the DEC axis removed the mount only tracks in RA and you can easily take photos. Now the mount works in a similar way to the Star Adventurer mount, but heavier duty.

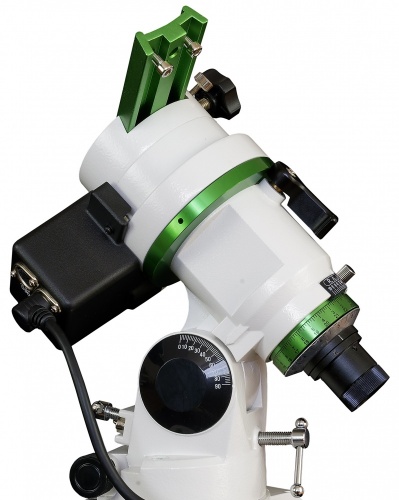

The mount head bears some cosmetic similarity to the EQ3 PRO but it has much improved features and performance. For example the mount is equipped with a large 92.5 mm diameter RA worm wheel with 180 teeth for high precision tracking (compared to 130 teeth for the EQ3). Also the strength of the rotary base has been increased. This results in much greater stability, higher payload capacity and less vibration. Through this the periodic error is also greatly improved.

The EQM-35 PRO SynScan is a conveniently sized mount with impressive features suitable for both novice & experienced astronomers alike, for both visual and imaging use.

Positioning Accuracy up to 1 arc minute. Accuracy enhanced by software collimation error (mount mechanical error) compensation.
High Precision Stepper Motors with 1.8° step angle and 64 micro steps driven.
Resolution 0.28125 Arc Second
Slewing speed up to 3.4°/sec (800X).
ST-4 type Autoguider Interface: Supports 0.25x, 0.5x, 0.75x 1x guiding rate
Dual or Single Axis Tracking
Tracking Rate: Lunar, Solar or Sidereal
Synscan™ Hand Controller with 42,900+ Object database containing complete Messier, NGC, and IC catalogues.
Periodic Error Correction.
PC compatibility.
Synscan Handset Firmware Upgradeable via internet download.
Supplied with Polarscope
Latitude Adjustment 15° to 65°
R.A. Worm Gear 92.5mm Diameter, 180 Teeth
DEC Worm Gear 34.3mm Diameter, 65 Teeth
R.A. Worm Drive 25.5mm Diameter, Steel
DEC Worm Drive 20mm Diameter, Steel
Payload Capacity 10kg
Stabiliser Bar 20mm Diameter, Steel
Counterweights supplied: 2 x 3.4kg
Weight of Mount Head: 4.38kg (3.28 kg with DEC & Bar removed)
1.75" Diameter Stainless Steel Tripod & Accessory Tray, Weight 5.7kg
Power Requirement DC12V 3A Tip Positive
Sky-Watcher 7Ah or 17Ah Power Tank Recommended

Average Rating (1 Review):
Write a Review and share your opinions!

Rating:
Impressive for a entry level mount
06 January 2021  |

I have been using this mount for 7 months now, and its delivered. I have used it to its max imaging capacity and it tracks and guides very well. The Goto is accurate and I would recommend using it with the Sky Watcher Wifi dongle. I have nice round stars and had to drop very few frames due to tracking errors. I would say its the best mount for the ££. highly recommend it.

Was this helpful to you?  Yes  /  No

16 of 17 people found this review helpful.

Some items that are showing as in stock are in stock at our holding warehouses, not at the shop. To double check the stock levels at the shop, please contact us on 01909774369 or sales@rothervalleyoptics.co.uk.

The delivery times for most items is 1 - 2 days but again, please double check stock levels on important orders before placing an order via the website.

The delivery costs for courier next day are for mainland UK only. If you live in the Scottish Highlands/Islands, Channel Islands or Northern Ireland, then a shipping surchage will apply. please contact us for prices. Smaller items can still go 1st class via Royal Mail.

Please note that if you are wanting to take advantage of our Saturday and Sunday timed services or next day pre 12 or pre 10:30 services, you MUST check that the stock is here at the shop before placing orders. Also, orders using the Saturday and Sunday services must be placed before 1pm the previous working day. Also, please remember to check that the stock is here at the shop before placing orders. If the stock is not at the shop, we won't be able to ship on any of the timed services.

Please note International customers will need to contact us for a shipping price prior to ordering via the website. We don't ship all items internationally. It is at our discretion what we ship outside of the UK. This all depends on the size and weight of the items. Please get in touch with us for any postage costs. Please note we do NOT ship telescopes or heavy items outside of the UK. This is due to massive postage costs and problems regarding returns.

If you have any questions regarding stock levels or delivery, please get in touch.

Zygo Interferometer Testing For ED Refractor Telescopes!

We are extremely pleased to announce our Zygo Interferometer is now installed and ready for use! Our experienced staff can test refractor lenses up to 120mm aperture and provide a comprehensive 2 page report showing the optical quality and Strehl ratio, plus much more information. We are using the very latest Zygo MX software to provide a more detailed report compared to other standard reports.



The interferometer is essentially a measuring instrument. Within the interferometer is a calibrated laser that is pointed through the optical test surface, then onto a high quality reference sphere, then back through the test subject then to an internal camera which gives us the measurement on the screen. From this, we can adjust the position of the test optic and the reference sphere to obtain a perfectly calibrated system. The more central the laser to the test optic and then on return, the better and more accurate reading and measurement we can take. This takes a lot of adjustment to get the best results from the optical surface. Once the measurement has been taken, we are provided with a series of results that show the optical quality of the surface plus other information. Continue reading for an explanation of the individual values and you can also see a test report that was done on one of our RVO Horizon 60 OTAs.

We are offering certain telescopes with a Zygo test at an extra cost. Mainly ED doublets and triplets. All available telescopes with a Zygo test report are listed here. Just select Zygo Test Report from the drop down box at the top of the listing and we will test the optics in house and provide a full 2 page report with your scope. This will show you the optical quality of your telescope optics. We can also offer this service on your refractor telescope. Please get in touch for more details about this.

At Rother Valley Optics, one thing we pride ourselves on is customer service and quality of our equipment. When we test your telescope, we will ensure that it is of the highest quality otherwise, we will reject the scope under our strict quality control and test another model for your peace of mind. One of the main values to look at when testing a refractor is the Strehl ratio. The higher this number, the higher quality lens you have. At Rother Valley Optics, we will guarantee the highest possible Strehl ratio for your telescope.  We will aim to provide 0.95 Strehl or higher on Takahashi, RVO Horizon, William Optics and many more! Generally, the higher the Strehl ratio, the lower the Astigmatism and Coma meaning a better image quality from your instrument.

Other measurements such as the PV and RMS are important too. With these measurements, the lower the number the better as it shows less curvature on the lens. The flatter an optical lens, the better it will perform. The PV rating (Peak To Valley) is a measurement from the highest point (Peak) to the lowest point (Valley). From this we get the RMS (Root, Mean, Square). This is a similar figure to the PV and measured exactly the same way. The RMS is basically an average height difference from the PV so again, the lower the better. As you can see form the example below, we measured an RMS of just 0.027 wave which is a very good value.

We also measure the Power with our systems which is essentially the error from the reference sphere to the test optic. The reference sphere we use on our system is a very high quality sphere so the closer to zero the Power, the less error between the 2 elements thus ensuring a higher quality optical surface.

You will also see some more values such as Astigmatism and Coma. Again, these are measured by the interferometer when we take measurements of the optical surface after adjustment. These are values which ideally would be at 0 but as our test optics are all curved lenses, there will always be astigmatism and coma present. The lower the number, the less of these aberations you will effectively see but with most refractors, you can buy field flatteners which will compensate for the coma anyway. The astigmatisms value is explaining the error between the symmetrical curvature of the lens. Basically, no lens will be perfectly symmetrical, the lower the astigmatism, the more symmetrical the lens surface is.

Once the Zygo test report has been completed, the optical alignment is thoroughly tested and tuned to ensure they are spot on before they leave us.

All available telescopes are on the website at the link below and ones we've tested already that are available straight away are also listed.

https://www.rothervalleyoptics.co.uk/zygo-tested-refractors.html

Here is an example of the test what we provide. This was a test on one of our Horizon 60 ED OTA's.

For any questions about this amazing new service, please either call 01909774369 or email sales@rothervalleyoptics.co.uk.
