ZWO ASI071MC Pro Cooled Colour APS-C 1.8" One Shot Colour Deep Sky Imaging Camera

ZWO ASI071MC Pro Cooled Colour APS-C 1.8'' One Shot Colour Deep Sky Imaging Camera
  Zoom
Price:  £1,099.00(Inc. 20% VAT)
+

Model:  ZWO-ASI071MC-PRO
Brand:  ZWO

Availability



Generally In Stock, Please Confirm Before Ordering



2 Year Warranty On All New Items
(Excluding Batteries & Globes)



ASI071MC Pro camera includes a 256MB DDR3 memory buffer to help improve data transfer reliability. Additionally, the use of a memory buffer minimizes amp-glow, which is caused by the slow transfer speeds when the camera is used with a USB 2.0 port.

One of the main differences between the old and new versions is the added DDR memory buffer, but there are other mechanical improvements also show ZWO's commitment to development.

It still features exactly the same APS-C sized 16MP imaging sensor. The same sensor you will find in a Nikon D7000 and D5100, but the big difference is that the electronics were designed specifically for deep sky imaging and it also comes with two-stage TEC-cooling. This camera is only available as a colour version, so you would be advised to use it in areas with good quality dark skies with limited light polution or alternatively use it with a CLS or UHC filter to reduce the effects of light pollution...

Single Shot Colour only refers to the fact that you don't need to use LRGB filter sets or narrowband filter sets to take images when you use this camera. You can achieve a colour image in just one step, although in practice you would probably still take several images and stack them together to reduce noise and get rid of other artefacts... So if you have limited time and only want pretty pictures with comparatively small effort, this is the camera for you.

With the ZWO ASI071MC-PRO you won't have to spend lots of time to get beautiful images, however if you need to tackle light pollution, you would also need a light pollution filter like a UHC or CLS filter. Depending on the F-ratio of your telescope you would need either a 36mm filter (without cell) or maybe even a 2" filter (in cell). Contact us if you are not sure what filter you need and how to attach it to this camera.

Astrophotography Performance
Based on the features of this camera we would anticipate that it would be a very good choice for imaging deep sky object for those who don't want to bother with filters, (other than a light pollution filter if necessary), plus with 10 frames per second frame rate it will most likely provide stunning views of the moon when used as a live view visual observation tool. (of course, it will also depend on the used telescope and seeing conditions)

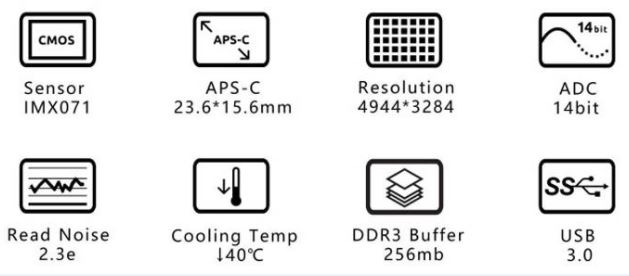

Features of the NEW ZWO ASI071MC-PRO COOLED camera

Most famous SONY sensor: Sony IMX071 APS-C (1.8″)
Regulated Two-stage Tec-Cooling: 35-40 degree below ambient temperature
Very low read noise: 2.3e @24db gain 3.3e @lowest gain
14Bit ADC: provide real 14bit Dynamic range
Electronic shutter: no vibration problem with machanical shutter
USB3.0 Port (back compatible with USB2.0): 10fps@4944X3284 134fps@320X240
AR coated protect window:all light can pass
Controllable Anti-Dew protect window heater: you can turn it off to save power
External desiccant tube design: no need to open camera forever
Compatiable with Windows / Mac OS / Linux

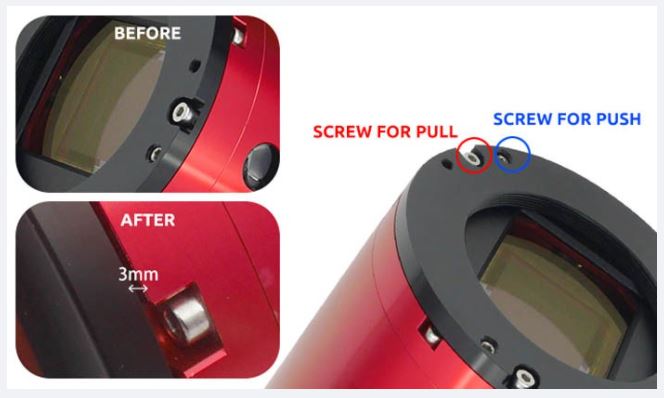

Unique Tilt Adapter
The ZWO ASI071MC-PRO comes with a unique, built-in tilting device. Say goodbye to tilt problems forever!

USB 3.0 Port & USB2.0 HUB
USB 3.0 Port: Provides 5Gb bandwidth to make it possible for ASI071MC-PRO to run at 10 fps (14bit, normal mode) at full resolution (16Megapixels).

We recommend using a 12V (3-5A or more) DC adapter for cooler power supply (2.1/5.5mm, center positive). Using a 9V - 15V battery (power tank) is also suitable for the cooler power supply.

USB 2.0 HUB: Can connect with various accessories, including a filter wheel, guide camera or electronic focuser, allowing you to manage your cables better. There are two short 0.5m USB2.0 cables included with the ASI071 Pro. The hub is powered by the external power supply if you connect one.

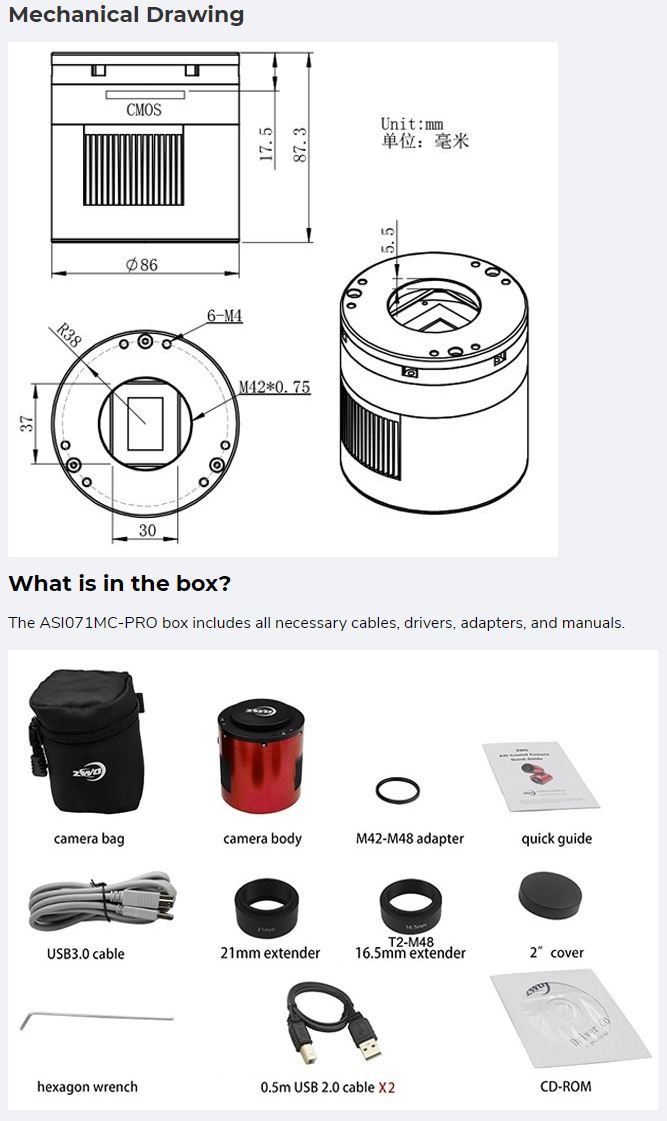

New mechanical design and Anti-Dew Heater
ASI071MC-PRO Camera has been mechanically upgraded as well and the internal anti-dew heating system improved.

Please note, due to the above improvements, the diameter of the camera body is increased to 86mm (ASI071MC-Cool was 78mm in diameter).

Be the first to Write a Review for this item!

Some items that are showing as in stock are in stock at our holding warehouses, not at the shop. To double check the stock levels at the shop, please contact us on 01909774369 or sales@rothervalleyoptics.co.uk.

The delivery times for most items is 1 - 2 days but again, please double check stock levels on important orders before placing an order via the website.

The delivery costs for courier next day are for mainland UK only. If you live in the Scottish Highlands/Islands, Channel Islands or Northern Ireland, then a shipping surchage will apply. please contact us for prices. Smaller items can still go 1st class via Royal Mail.

Please note that if you are wanting to take advantage of our Saturday and Sunday timed services or next day pre 12 or pre 10:30 services, you MUST check that the stock is here at the shop before placing orders. Also, orders using the Saturday and Sunday services must be placed before 1pm the previous working day. Also, please remember to check that the stock is here at the shop before placing orders. If the stock is not at the shop, we won't be able to ship on any of the timed services.

Please note International customers will need to contact us for a shipping price prior to ordering via the website. We don't ship all items internationally. It is at our discretion what we ship outside of the UK. This all depends on the size and weight of the items. Please get in touch with us for any postage costs. Please note we do NOT ship telescopes or heavy items outside of the UK. This is due to massive postage costs and problems regarding returns.

If you have any questions regarding stock levels or delivery, please get in touch.

Zygo Interferometer Testing For ED Refractor Telescopes!

We are extremely pleased to announce our Zygo Interferometer is now installed and ready for use! Our experienced staff can test refractor lenses up to 120mm aperture and provide a comprehensive 2 page report showing the optical quality and Strehl ratio, plus much more information. We are using the very latest Zygo MX software to provide a more detailed report compared to other standard reports.



The interferometer is essentially a measuring instrument. Within the interferometer is a calibrated laser that is pointed through the optical test surface, then onto a high quality reference sphere, then back through the test subject then to an internal camera which gives us the measurement on the screen. From this, we can adjust the position of the test optic and the reference sphere to obtain a perfectly calibrated system. The more central the laser to the test optic and then on return, the better and more accurate reading and measurement we can take. This takes a lot of adjustment to get the best results from the optical surface. Once the measurement has been taken, we are provided with a series of results that show the optical quality of the surface plus other information. Continue reading for an explanation of the individual values and you can also see a test report that was done on one of our RVO Horizon 60 OTAs.

We are offering certain telescopes with a Zygo test at an extra cost. Mainly ED doublets and triplets. All available telescopes with a Zygo test report are listed here. Just select Zygo Test Report from the drop down box at the top of the listing and we will test the optics in house and provide a full 2 page report with your scope. This will show you the optical quality of your telescope optics. We can also offer this service on your refractor telescope. Please get in touch for more details about this.

At Rother Valley Optics, one thing we pride ourselves on is customer service and quality of our equipment. When we test your telescope, we will ensure that it is of the highest quality otherwise, we will reject the scope under our strict quality control and test another model for your peace of mind. One of the main values to look at when testing a refractor is the Strehl ratio. The higher this number, the higher quality lens you have. At Rother Valley Optics, we will guarantee the highest possible Strehl ratio for your telescope.  We will aim to provide 0.95 Strehl or higher on Takahashi, RVO Horizon, William Optics and many more! Generally, the higher the Strehl ratio, the lower the Astigmatism and Coma meaning a better image quality from your instrument.

Other measurements such as the PV and RMS are important too. With these measurements, the lower the number the better as it shows less curvature on the lens. The flatter an optical lens, the better it will perform. The PV rating (Peak To Valley) is a measurement from the highest point (Peak) to the lowest point (Valley). From this we get the RMS (Root, Mean, Square). This is a similar figure to the PV and measured exactly the same way. The RMS is basically an average height difference from the PV so again, the lower the better. As you can see form the example below, we measured an RMS of just 0.027 wave which is a very good value.

We also measure the Power with our systems which is essentially the error from the reference sphere to the test optic. The reference sphere we use on our system is a very high quality sphere so the closer to zero the Power, the less error between the 2 elements thus ensuring a higher quality optical surface.

You will also see some more values such as Astigmatism and Coma. Again, these are measured by the interferometer when we take measurements of the optical surface after adjustment. These are values which ideally would be at 0 but as our test optics are all curved lenses, there will always be astigmatism and coma present. The lower the number, the less of these aberations you will effectively see but with most refractors, you can buy field flatteners which will compensate for the coma anyway. The astigmatisms value is explaining the error between the symmetrical curvature of the lens. Basically, no lens will be perfectly symmetrical, the lower the astigmatism, the more symmetrical the lens surface is.

Once the Zygo test report has been completed, the optical alignment is thoroughly tested and tuned to ensure they are spot on before they leave us.

All available telescopes are on the website at the link below and ones we've tested already that are available straight away are also listed.

https://www.rothervalleyoptics.co.uk/zygo-tested-refractors.html

Here is an example of the test what we provide. This was a test on one of our Horizon 60 ED OTA's.

For any questions about this amazing new service, please either call 01909774369 or email sales@rothervalleyoptics.co.uk.
